Velox Dash™ Touchscreen Interface for Probe Station Control

Product Overview

FormFactor’s new companion device is here! Velox Dash™ enhances probe station control by providing access to the most-used functionalities with just the touch of a finger. With its modern user interface, Velox Dash sets a new standard for easy operation of engineering probe stations. The companion device combines an intuitive touch interface with an adaptable workspace. Additionally, Velox Dash consolidates the functionalities of the hardware joystick and eVue remote control into a single platform. Its user-centered design supports intuitive, efficient, and comfortable daily operation.

	Modern User Interface with Touchscreen Convenient probe station operation with just the touch of a finger.
	Access to Most Common Probe Station Functions Fast and efficient operation of the probe station.
	Intuitive and Customizable for Operator Needs Simplified operation—even for inexperienced users.
	Integrated Solution Replaces both the mechanical joystick and eVue remote control.

Key Features

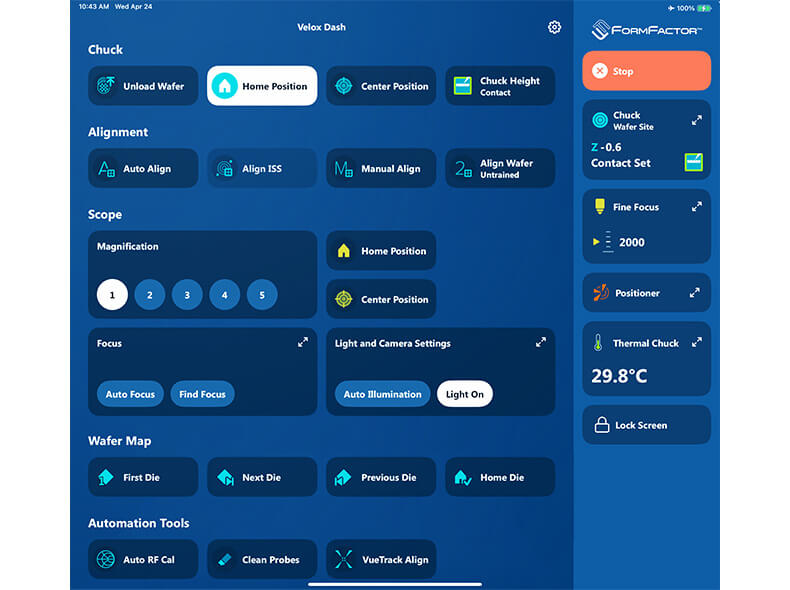

Main Screen

Fast and efficient probe station operation
Access to the most common functionalities: Load/Unload Wafer, Chuck positions, Alignment methods, Scope settings, Wafer Map stepping and Automation Tools

Motion Controls

Intuitive and precise probe station navigation
On-screen joystick enables precise X and Y movement of the chuck, scope, and motorized positioners
Scrollable Z-wheels available for chuck, scope, fine focus and motorized positioner Z-axis movements
All motion controls are displayed across a wide area of the screen and can be operated “blindly” while conveniently observing the system monitor or machine itself.

Multi-finger Capability

Select from different joystick modes: Free Drag Movement, Joystick Mode, or Lock Movement Angle to 45°

Thermal Control

Set pre-defined or custom temperatures
Thermal chuck temperature and status are displayed on both the Thermal Control screen and the Main Screen of Velox Dash

Lock Screen

Can be locked with a customizable message for other lab operators

Integrated Solution with Retractable Keyboard

High-quality keyboard tray is fully integrated into the probe station
Screen angle is adjustable to suit operator preference
Retractable keyboard for space-saving convenience
Mouse rests securely next to the Velox Dash screen

Compatibility

Videos

Velox Dash™ – Intuitive Touchscreen Control for Probe Stations

Get to know Velox Dash, the intuitive touchscreen companion app designed to elevate your workflow. In this video, we’ll walk you through how to use Velox Dash, explore its powerful features, and show you why it stands out. With a sleek, modern design and responsive controls, Velox Dash makes operating engineering probe stations faster, smarter, and more enjoyable.
